A component can look perfect and still destined to fail. Machining accuracy, surface finish, and dimensional tolerances are important indicators of quality, but they do not reveal what ultimately determines whether a part will survive in real operating conditions.
A component that has been improperly heat-treated may meet every dimensional requirement and still fail because the material never achieved the necessary hardness, strength, or toughness.
If you are still relying on batch testing or destructive sampling, that discovery usually happens after additional processing, assembly, or shipment.
The good news is that these failures are preventable. By understanding the most common heat treatment problems and verifying material condition using the MAGNATEST product family by FOERSTER, you can eliminate uncertainty and protect both production and performance.
Why it Matters
Heat treating is a controlled heating and cooling process that changes a material’s internal structure. These changes determine whether a component will perform reliably once it is placed into service. The results of heat treatment directly affect:
- Hardness
- Strength
- Toughness
- Wear resistance
- Fatigue life
- Dimensional stability
When heat treatment is done correctly, these properties work together to support the component’s intended function. When it is done incorrectly, failure is often unavoidable.
Unlike machining defects, heat treatment problems do not appear on the surface of the part. Most defects are microstructural, meaning they cannot be detected visually and are often missed by basic inspections.
As a result, many heat treatment inconsistencies[DW2] remain hidden until components are already assembled, shipped, or placed into service. At that point, the cost of failure increases dramatically.
Let’s explore the five most common improper heat treatment conditions to better understand why they can lead to serious quality and reliability risks.
1. Under Hardening
Under-hardened components fail to meet the minimum hardness and strength required for their application. These parts often pass dimensional inspections and may even meet surface hardness checks at isolated points, but the overall material condition is insufficient.
This condition is typically caused by low austenitizing temperatures, inadequate soak time, or ineffective quenching.
The result is a component that cannot resist wear or load as intended, leading to:
- Rapid wear and surface damage
- Plastic deformation under load
- Reduced fatigue life and early service failure
Under-hardening is especially dangerous because failures often occur gradually, making the root cause difficult to identify once parts are in the field.
2. Over Hardening or Poor Tempering
High hardness values can create a false sense of security. Components that are over-hardened or improperly tempered may achieve impressive hardness numbers, but at the cost of toughness and ductility.
Without proper tempering, the material becomes brittle and unable to absorb stress, vibration, or impact.
Common consequences include:
- Sudden cracking or brittle fracture
- Failures during assembly or press-fit operations
- Increased scrap, warranty claims, and customer complaints
These failures often occur without visible warning and can create serious safety concerns in load bearing or human-interaction applications.
3. Inconsistent Microstructure
Even small variations in furnace temperature, atmosphere control, or quench conditions can lead to inconsistent microstructures within a batch or even within individual parts. This inconsistency creates variability in mechanical properties that cannot be predicted.
The impact includes:
- Unpredictable fatigue life
- Batch-to-batch performance variation
- Intermittent and difficult-to-diagnose field failures
This is why standards such as CQI-9 place strong emphasis on pyrometry discipline and quench control. Minor process deviations have the potential to result in major differences in component performance.
4. Improper Case Depth
For surface-hardened components, correct case depth is just as important as surface hardness. If the hardened layer is too shallow or too soft, it can wear prematurely, exposing a softer core that was never designed to carry surface loads.
This typically results in:
- Rapid surface degradation
- Accelerated wear and scuffing
- Reduced load-carrying capability and shortened service life
Case depth issues often remain undetected until significant damage has already occurred, making them particularly costly to correct.
5. Quench-Related Problems
Quenching is one of the most sensitive and failure-prone stages of heat treatment. Inconsistent quench media temperature, poor agitation, or delayed transfer times can introduce severe internal stresses and hardness variation.
These issues commonly lead to:
- Distortion and out-of-tolerance parts
- Cracking and scrap
- Residual stresses that cause delayed or in-service failures
Because quench-related defects are often internal, they require more than visual inspection to detect. Tight process control combined with immediate verification is essential to prevent defects from continuing down the production line.
100% Non-Destructive Testing Provides a Competitive Edge
Traditional destructive testing methods are slow, resource-intensive, and limited to small sample sizes. They consume usable parts, introduce delays, and provide only an estimate of overall batch quality. When problems are detected, they are often discovered after additional value has already been added through machining, coating, or assembly, when correction is most costly.

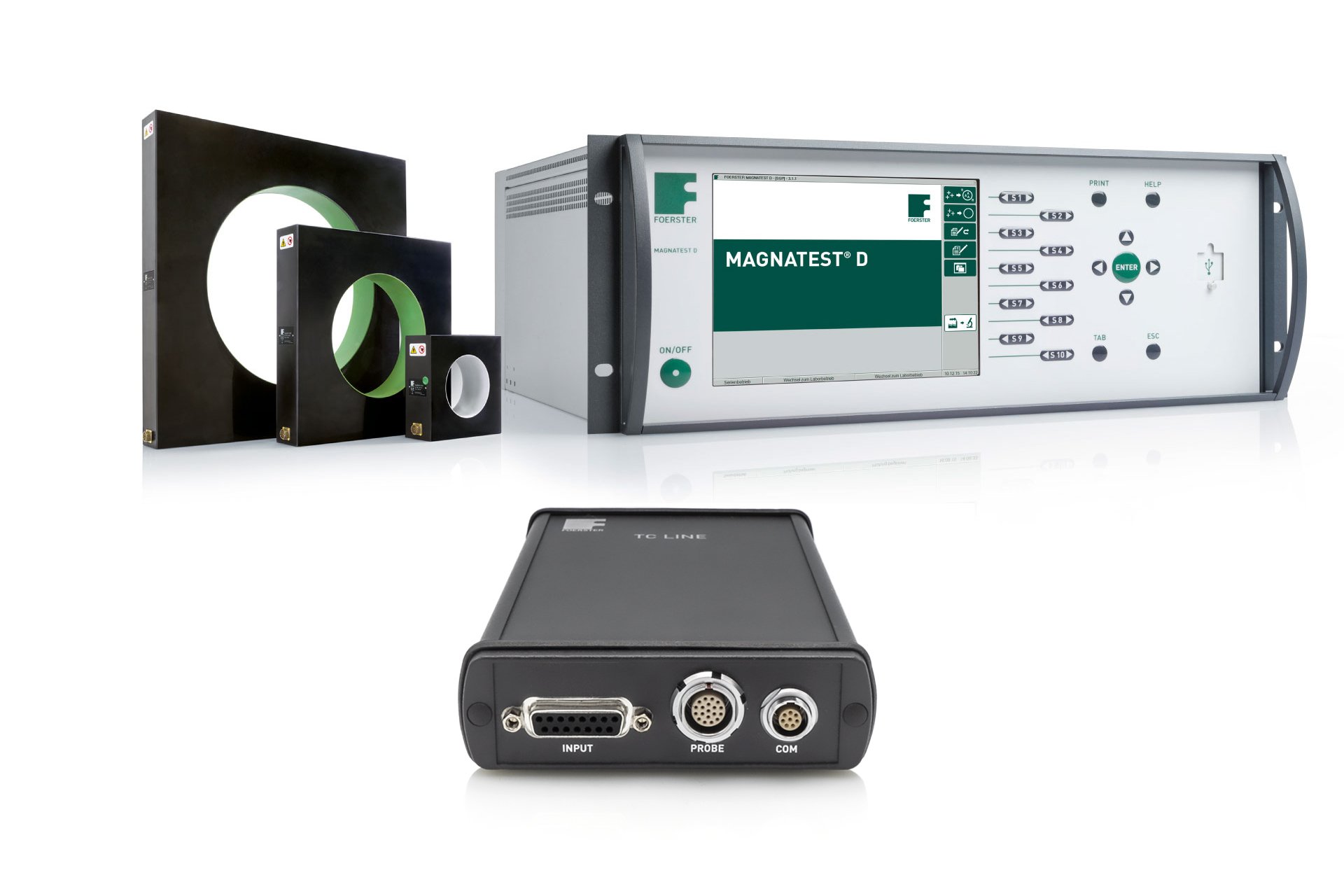

Incorporating ,non-destructive testing changes this approach. By using eddy current testing systems, like the MAGNATEST product family, you can verify heat treatment conditions directly within the production line. Each component is evaluated without surface damage and at full production speed. In many applications, testing is completed in under 15 milliseconds per part.
This approach removes reliance on batch assumptions and replaces them with direct insight into material condition, part by part. Instead of estimating quality based on limited samples, you gain confidence that every component meets its intended material requirements before it moves downstream.
With the MAGNATEST product family integrated into production, you can:
- Detect incorrect heat treatment conditions before parts leave the process.
- Identify insufficient or inconsistent hardening across production.
- Verify that tempering has been performed correctly.
- Detect material mix-ups, including wrong alloys or incorrect batches.
- Implement true 100% inspection in high-volume manufacturing environments.
In addition to heat treat verification, the MAGNATEST systems can support density verification and can also be configured with clear pass or fail criteria at the end of the line for critical final inspections. By moving verification into the production flow, you gain faster feedback, tighter process control, and greater confidence in every part.
Actionable Takeaways: What Manufacturers Can Do Right Now
Heat treatment issues are costly problems with a simple solution. To reduce risk and improve control, focus on the following actions:
- Verify material condition inline.
Instead of waiting for batch-based destructive results, confirm the heat treatment condition directly on the production line, where issues can be addressed immediately.
- Inspect every part, not just the “good parts”.
Inline eddy current testing enables you to verify 100% of production, rather than extrapolating from a few parts.
- Replace destructive sampling.
Avoid sacrificing good parts and cut costs when you switch from batch testing to non-destructive testing.
- Instantly detect variation.
The MAGNATEST product family identifies small process shifts before they result in large quantities of scrap, rework, or customer exposure.
- Integrate clear pass/fail criteria.
Automated sorting at the end of heat treatment or final processing ensures that nonconforming parts are contained immediately.
The MAGNAETST literally ensures that each component performs as intended. By incorporating the MAGNATEST product family into your line, you gain faster feedback, tighter process control, and greater confidence that every component released will perform as intended.
