Eddy current testing is a non-destructive testing method used to evaluate electrically conductive materials.
The method works by generating an alternating magnetic field with a test coil. This field induces eddy currents within the material. The eddy currents then generate their own magnetic field, which is detected and evaluated by the testing system.
Changes in the electrical or magnetic properties of the material can alter the measured signal.
These changes can provide information about:
- Surface cracks
- Pores
- Inclusions
- Coating thickness
- Hardness-related material conditions
- Heat treatment variations
- Material mix-ups
Although the same basic electromagnetic principle is used, eddy current technology can be applied in several different ways depending on the inspection problem.
Three important applications are:
- Crack testing
- Coating thickness measurement
- Material and structure testing
How Does Eddy Current Testing Work?

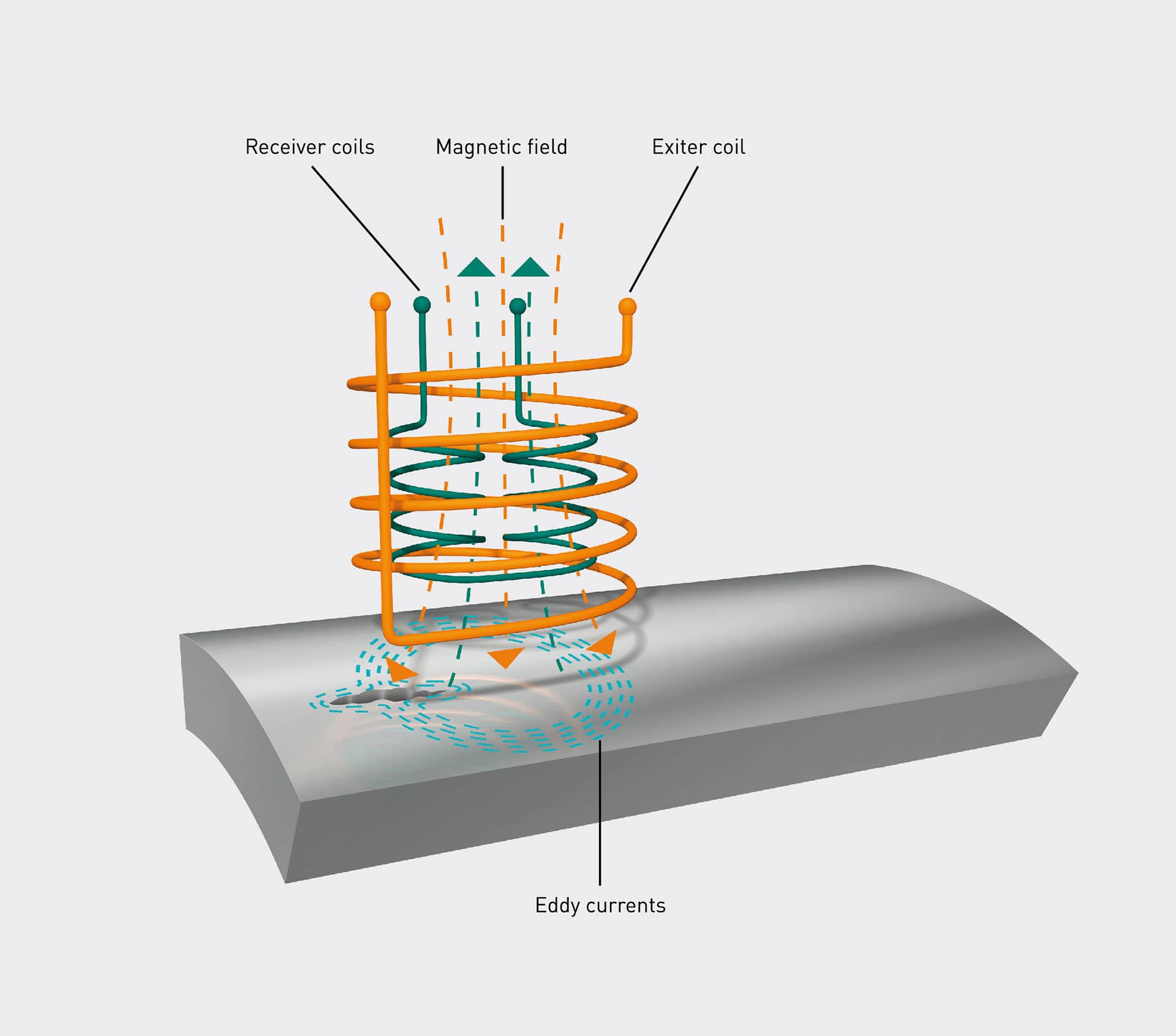

An excitation coil is supplied with an alternating current, creating a changing magnetic field.
When the probe or coil is positioned near an electrically conductive material, this magnetic field induces eddy currents in the test part.
These eddy currents create a secondary magnetic field.
A receiving coil measures the resulting electromagnetic response. Differences in the component can change characteristics of the received signal, including:
- Amplitude
- Phase
- Signal shape
The testing instrument evaluates these changes to identify differences in the material or component condition.
What the signal means depends on the application.
For crack testing, the system looks for disturbances caused by discontinuities such as cracks or pores.
For material testing, the system evaluates differences related to conductivity, permeability, or microstructure.
For coating thickness measurement, the electromagnetic response is used to determine the distance between the probe and the conductive or ferromagnetic base material.
1. How Is Eddy Current Testing Used for Crack Detection?
Eddy current crack testing is used to identify surface and near-surface defects in electrically conductive components.
When the surface is free of defects, eddy currents can flow through the material in a relatively consistent pattern.
A crack, pore, inclusion, or other discontinuity interrupts this flow. This changes the electromagnetic response measured by the probe.
The testing instrument detects these changes and evaluates whether they represent a relevant defect.
Eddy current crack testing can be performed using either a dynamic or manual/static inspection approach.
What Is Dynamic Eddy Current Crack Testing?
In dynamic crack testing, either the probe or the component moves during the inspection.
For rotationally symmetrical components, the part may rotate while a stationary probe scans its surface. Another option is to rotate the probe around a stationary component.
This allows the surface to be inspected systematically and at high speed.
Dynamic testing is particularly useful for automated production applications where manufacturers need to inspect large quantities of components.
Typical benefits include:
- High inspection speeds
- Repeatable probe movement
- Automated evaluation
- Automated OK/NOK sorting
- Integration into production lines
- 100% inspection potential
Applications can include automotive and industrial components where surface defects need to be identified before the part continues through production.
What Is Manual Eddy Current Crack Testing?
In manual testing, an operator moves the probe across the surface of the component.
This approach is useful when a component cannot easily be integrated into an automated inspection process or when localized areas need to be checked.
Manual eddy current testing can be used for:
- Maintenance inspections
- Field testing
- Localized crack detection
- Aerospace inspection
- Components with limited accessibility
Because the method is contactless, no coupling medium is required between the probe and the component.
What Should You Consider Before Using Eddy Current Crack Testing?
Before selecting eddy current testing for crack detection, consider:
- Is the material electrically conductive?
- What type of defect needs to be detected?
- Where is the expected defect located?
- How much of the component needs to be inspected?
- Does the component have rotational symmetry?
- Is manual or automated testing required?
- What level of defect sensitivity is required?
Answering these questions helps determine the appropriate probe, frequency, movement, and evaluation method.
2. How Is Eddy Current Technology Used for Coating Thickness Measurement?
Electromagnetic methods can also be used to measure the thickness of coatings applied to metallic base materials.
The measurement principle depends on the properties of both the coating and the underlying material.
Two common approaches are:
- Magnetic-inductive measurement
- Eddy current measurement
What Is Magnetic-Inductive Coating Thickness Measurement?
The magnetic-inductive method is used when a non-ferromagnetic coating is applied over a ferromagnetic base material.
A low-frequency electromagnetic field interacts with the ferromagnetic base material.
The coating creates distance between the probe and the base material. The instrument evaluates how this distance changes the electromagnetic response and calculates the coating thickness.
This method may be used for coatings such as:
- Zinc on steel
- Copper on ferromagnetic materials
- Other non-ferromagnetic coatings on ferromagnetic substrates
The exact suitability depends on the coating and base material combination.
What Is Eddy Current Coating Thickness Measurement?
The eddy current method can be used when a non-conductive coating is applied to an electrically conductive, non-ferromagnetic base material.
Examples may include:
- Paint
- Varnish
- Anodized layers
- Other non-conductive coatings
The probe generates an electromagnetic field that interacts with the conductive base material.
As coating thickness increases, the distance between the probe and the conductive material also increases. This changes the measured signal.
The instrument uses this relationship to determine the coating thickness.
What Can Affect Coating Thickness Measurements?
Reliable coating thickness measurement depends on several factors, including:
- Base material
- Coating material
- Probe selection
- Test frequency
- Component geometry
- Surface curvature
- Probe positioning
- Calibration
The appropriate measurement method should therefore be selected based on the material combination and component geometry.
3. How Is Eddy Current Testing Used for Material and Structure Testing?
Eddy current technology can also evaluate changes in the material structure of a component.
This type of inspection is often called material testing, structure testing, or magneto-inductive testing, depending on the application and material.
Instead of looking primarily for cracks, the system evaluates changes in electrical conductivity and magnetic permeability.
These properties can change when the material condition changes.
Applications include:
- Hardness verification
- Heat treatment verification
- Material mix-up testing
- Alloy sorting
- Microstructure evaluation
How Does Eddy Current Testing Evaluate Hardness?
Heat treatment can change the microstructure of a metallic component.
These structural changes can also affect electromagnetic properties such as:
- Electrical conductivity
- Magnetic permeability
Because these properties can correlate with hardness or heat treatment condition, an eddy current testing system can compare production components with known reference parts.
The component is typically passed through a coil or inspected using an application-specific probe.
An alternating magnetic field induces eddy currents within the material. The resulting electromagnetic response is measured and compared with established reference values.
This makes eddy current testing useful for comparative hardness and heat treatment verification.
It is important to distinguish this from a conventional hardness measurement. Eddy current testing typically determines whether the component's material condition matches an established reference rather than directly producing a Vickers, Rockwell, or Brinell hardness value.
How Does Eddy Current Testing Detect Material Mix-Ups?
Different materials can have different electrical conductivity and magnetic permeability.
These differences produce different electromagnetic responses.
As a result, an eddy current testing system can be taught to distinguish between selected materials or material conditions.
This can be useful when manufacturers need to verify that the correct alloy or material has entered the production process.
Material mix-up testing may help identify differences between:
- Different steel grades
- Different alloy compositions
- Different heat treatment conditions
- Incorrect incoming materials
The effectiveness of the sorting process depends on whether the materials have sufficiently different electromagnetic characteristics.
What Should You Consider Before Material or Structure Testing?
Important questions include:
- Is the material electrically conductive?
- Is the material ferromagnetic or non-ferromagnetic?
- Do the acceptable and unacceptable conditions have different conductivity or permeability?
- Is the entire component being evaluated or only a specific area?
- Are reference parts available?
- Is hardness, heat treatment, alloy composition, or another property the main inspection goal?
These factors help determine whether eddy current material testing can reliably separate the conditions that matter for the application.
How Do You Choose the Right Eddy Current Test Method?
The appropriate eddy current method depends on the problem you are trying to solve.
If you need to find surface cracks, crack testing is typically the most relevant approach.
If you need to determine the thickness of a coating, the material combination will determine whether an eddy current or magnetic-inductive coating thickness method is appropriate.
If you need to verify hardness, heat treatment, or material composition, material and structure testing may be the better option.
Start by asking:
- What material am I testing?
- What property or defect am I trying to identify?
- Is the problem located at the surface or within the material structure?
- Is the inspection manual or automated?
- What production speed is required?
- Are known reference parts available?
- Does every component need to be tested?
Clearly defining the inspection problem is the first step toward selecting the correct test method.
Can Eddy Current Testing Be Used in Automated Production?
Yes.
Eddy current testing can be particularly useful in automated manufacturing because electromagnetic signals can be generated, measured, and evaluated quickly.
Depending on the application, automated systems can support:
- 100% component inspection
- Automated OK/NOK evaluation
- Material sorting
- High-speed crack detection
- Hardness or heat treatment verification
- Production documentation
- Process monitoring
The correct automation concept depends on the component geometry, material, defect requirements, and cycle time.
Is Eddy Current Testing Right for Your Application?
Eddy current testing is a flexible non-destructive inspection technology, but the correct setup depends on what needs to be evaluated.
The same basic electromagnetic principle can support several very different inspection tasks, including:
- Detecting cracks and surface defects
- Measuring coating thickness
- Verifying material and heat treatment conditions
- Detecting material mix-ups
The key is matching the probe, frequency, evaluation method, and inspection setup to the specific material and inspection requirement.
